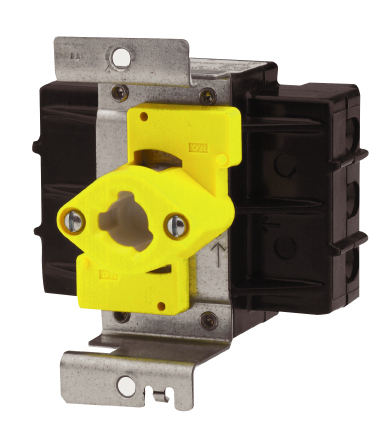

Rotary AC Manual Motor Starter.
|
| Product Specifications |
| Control Product Type |
Panel Mount Rotary Manual Motor
Starters. |
| Amperage |
60A |
| Voltage |
600V AC |
| SwitchType |
Three Pole. |
| Toggle/Handle Material |
Valox. |
| Contact Material |
Silver Cadmium. |
| Horsepower Rating |
10 HP @240V AC, 25 HP @ 480V
AC, 30 HP @ 600V AC |
| UL Listed |
UL Listed file #E70402- Guide
#NLRV. |
| CSA Certified |
CSA Certified File #LR46186-
Guide #184-N-13.13A. |
| Complies with: |
UL 508, NOM. |
| Mechanism |
Over-center rotary mechanism
assures consistant, reliable contact. |
| Dielectric Voltage Withstand |
2,200V for 1 min. |
| Terminal Maximum Capacity |
#4 AWG. |
| Terminal Torque |
30 in-lbs. |
|
