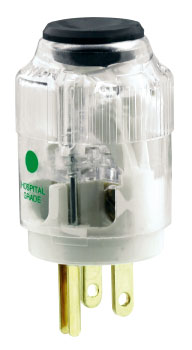

15A, 125V Hospital Grade Plug.
|
| Product Specifications |
| Hospital Product Type |
Plugs. |
| Poles and Wires |
2 Pole, 3 Wire. |
| Plug/Connector Type |
Straight Body. |
| Amperes |
15A |
| Voltage |
125V |
| Color |
Clear. |
| Max Working Voltage |
250V |
| Current Interrupting |
Certified for current interrupting
at full rated current. |
| Terminal Identification |
Brass, hot; green, grounding;
silver, neutral. |
| Terminal Accomodation |
#18 to #10 AWG flexible cord.
|
| Flammability |
HB or Better per UL94. |
| Operating Temperature |
Maximum Continuous 60 deg.
C, minimum -40 deg. C (w/o impact). |
| Blade/Contact Material |
High Performance Brass. |
| Blade Holder Material |
Nylon. |
| Cord Clamp Material |
Nylon. |
| Cord Grip Range |
.245"-.655" (6.2-16.6). |
| Terminal Cover |
Clear Polycarbonate. |
| Body Material |
Nylon. |
| Dust Seal |
TPE. |
| Assembly Screws |
Stainless Steel. |
| UL Listing |
UL Listed File #E1381, Guide
#AXUT. |
| CSA Listing |
CSA Certified file #LR16215
Guide #20T2. |
| Fed Spec Listing |
Conforms to Fed. Spec. #WC596.
|
| Standard |
NOM and CE. |
|
